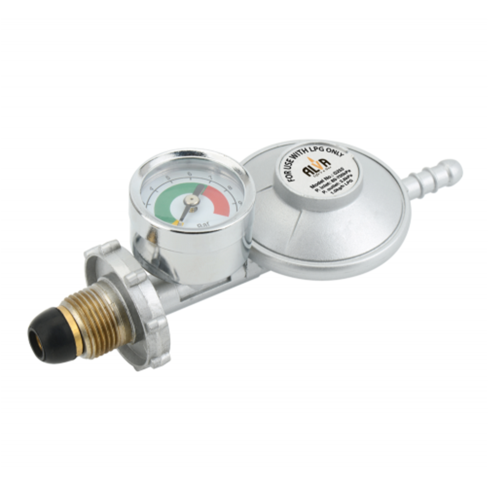

Alva Bullnose Regulator With Pressure Gauge

• Left hand thread
• Low pressure regulator
• 12 month warranty
• Cylinder Size (Recommended): 9kg - 48kg 5/8” BSP
• Operating Pressure: 700kPa at 2.8kPa output
• Capacity: 1.0kg/h
• Dimensions: 175mm(l) x 70mm(w) x 70mm(h)
• Weight: 0.300kg
• Approved in accordance with: SANS 1237 (appliance)

HOW THE GAUGE OPERATES
• Gauge works automatically once the cylinder is opened. When the valve is closed, the gauge returns to the O position once all the excess gas in the hose is depleted. in the hose.
• In cooler environments, the pressure inside the cylinder will lessen slightly, this will have a small effect reading the gauge - This is normal.
• The gauge only works when the cylinder valve is open.
• The gauge doesn’t need to be reset, the gauge returns to 0 when the gas supply has been shut off.
• When the needle approaches the YELLOW bar, this indicates that the cylinder is running out of gas. Refilling the cylinder is advisable.
